Geberit Duofix provides a comprehensive range with universal and self-supporting installation elements. These are available in drywall construction for all sanitary appliances including wall hung toilet frame, washbasins and urinals. The wall-hung frames are suitable for partition wall installations, in-wall installations in stud-walls in lightweight construction, and part-height and room-height prewall installations and can be used in new buildings and renovations.
Application purposes
For drywall construction
For installation in part or room-height prewall installations
For installation in room-height installation walls
For wall-hung WCs with connection dimensions in accordance with EN 33:2011
For wall-hung WCs with large projection up to 70 cm
For floor constructions 0–20 cm
Characteristics
Range 2016
Self-supporting frame, powder-coated
Frame with ø 9 mm drilling holes for fastening in wood frame
construction
Frame suitable for ceramic WC appliances with small contact surface
(with pressure-resistant wall covering)
Galvanized feet
Leg supports infinitely variable in height
Non-slip leg supports
Foot plate depth suitable for installation in U-profiles UW 50 and
Geberit Duofix system rails
Connection bend can be installed without tools at different depths
Connection bend can be mounted vertically with front flush
Waste connector bend, extended, for connection in floor
Fastening for connection bend, sound-absorbing
Concealed cistern with front actuation
Concealed cistern, fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Immediate post flush possible with factory setting
Tool-free installation and maintenance work on concealed cistern
Water supply connection on the top left
Protection cover box for service opening protects against moisture and dirt
Protection box for service opening can be cut to length, suitable for surface-even flush plates
Equipped with conduit pipe for feed pipe for connection of Geberit

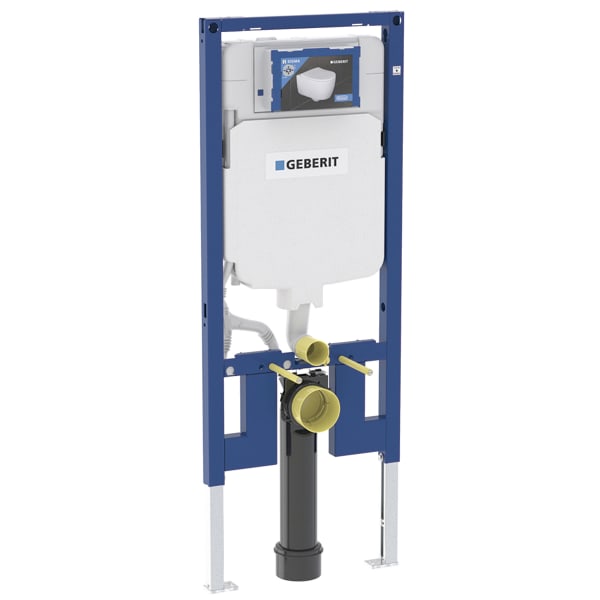

Geberit Duofix Wall-hung WC Frame with Sigma concealed cistern - Including PreWall brackets and drainage bend - 98cm with Sigma cistern 12cm
111.911.00.3
Geberit Duofix Wall-hung WC Frame with Sigma concealed cistern - Including PreWall brackets and drainage bend - 112cm with Sigma cistern 12cm
111.383.00.3
Geberit Duofix Wall-hung WC Frame with Sigma concealed cistern - Including drainage bend no PreWall brackets For Less-abled installation - 112cm with Sigma cistern 12cm
111.352.00.5
Geberit Duofix Wall-hung WC Frame with Sigma concealed cistern - Including PreWall brackets and WC bend - 114cm with Sigma cistern 8cm
