Geberit Duofix provides a comprehensive range with universal and self-supporting installation elements. These are available in drywall construction for all sanitary appliances including wall hung toilet frame, washbasins and urinals. The wall-hung frames are suitable for partition wall installations, in-wall installations in stud-walls in lightweight construction, and part-height and room-height prewall installations and can be used in new buildings and renovations.
Application purposes
For drywall construction
For installation in part or room-height prewall installations
For installation in room-height installation walls
For wall-hung WCs with connection dimensions in accordance with EN 33:2011

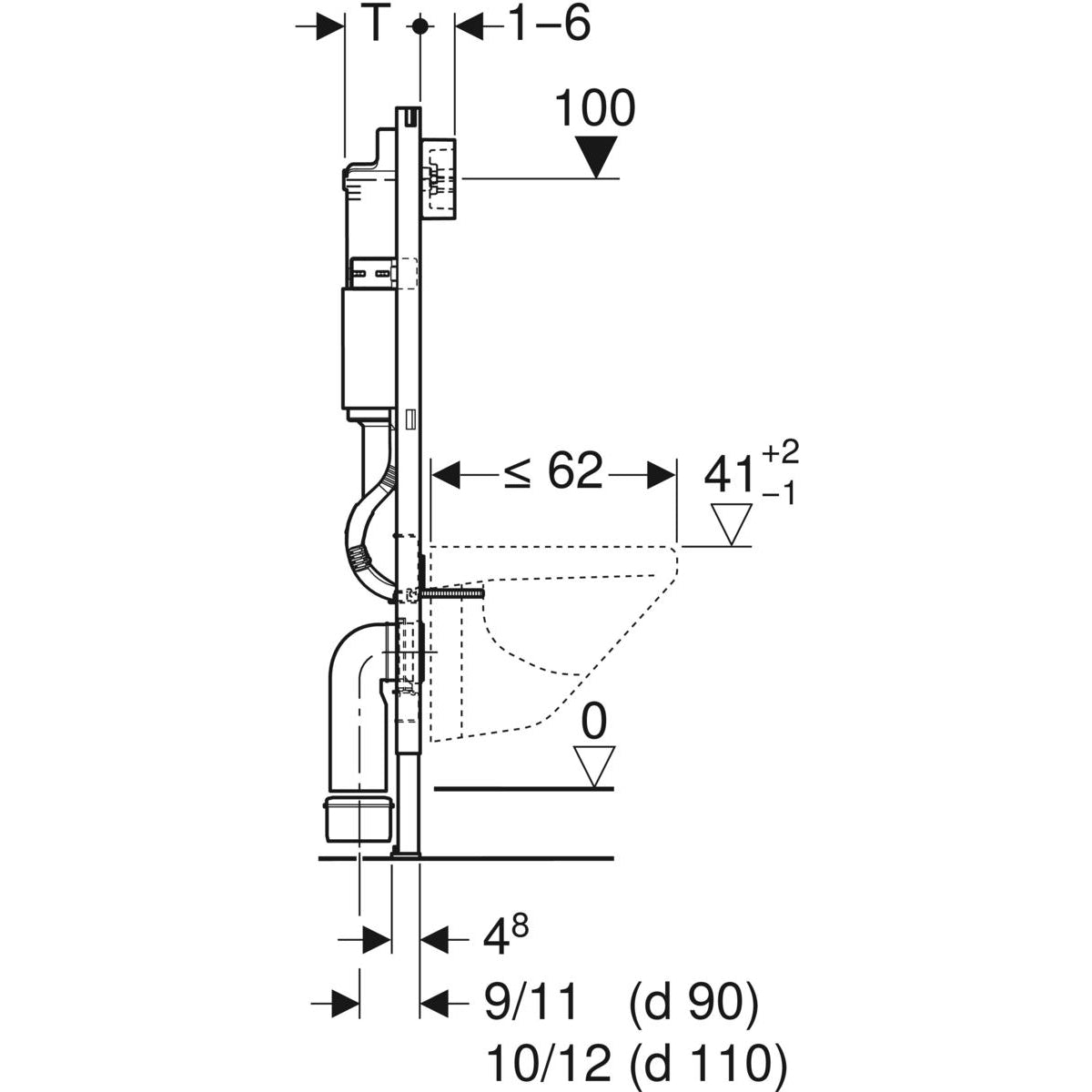

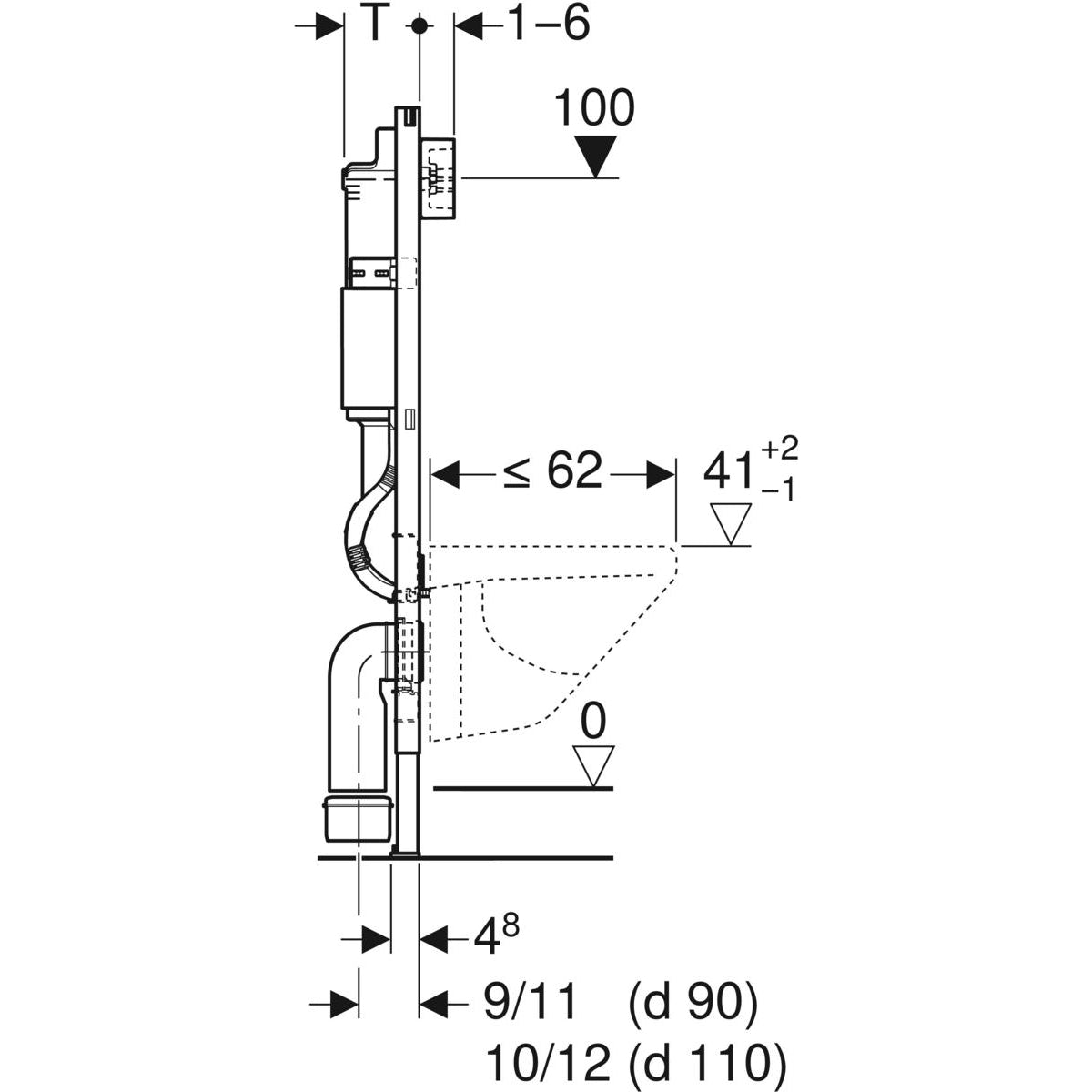

For wall-hung WCs with projection up to 62 cm

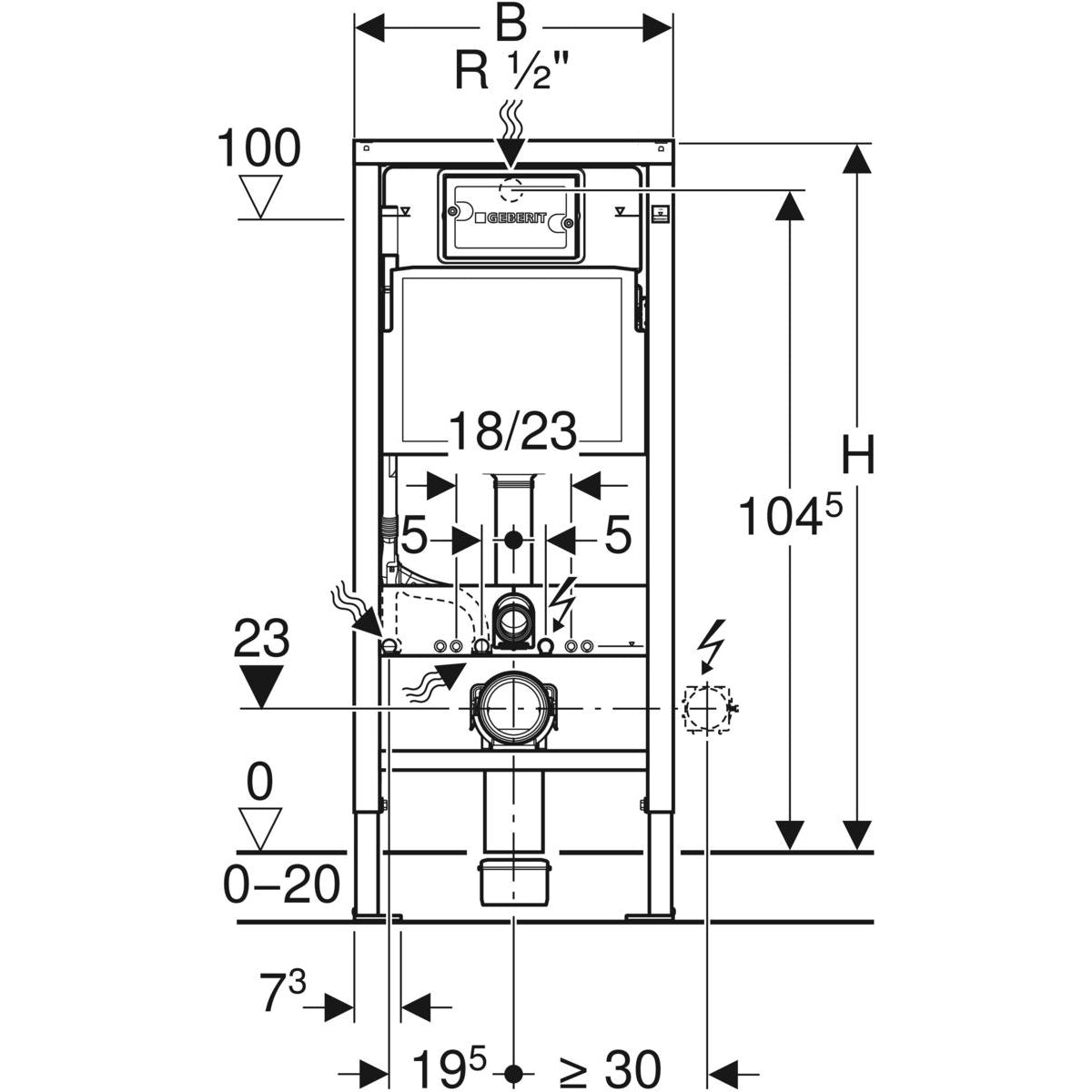

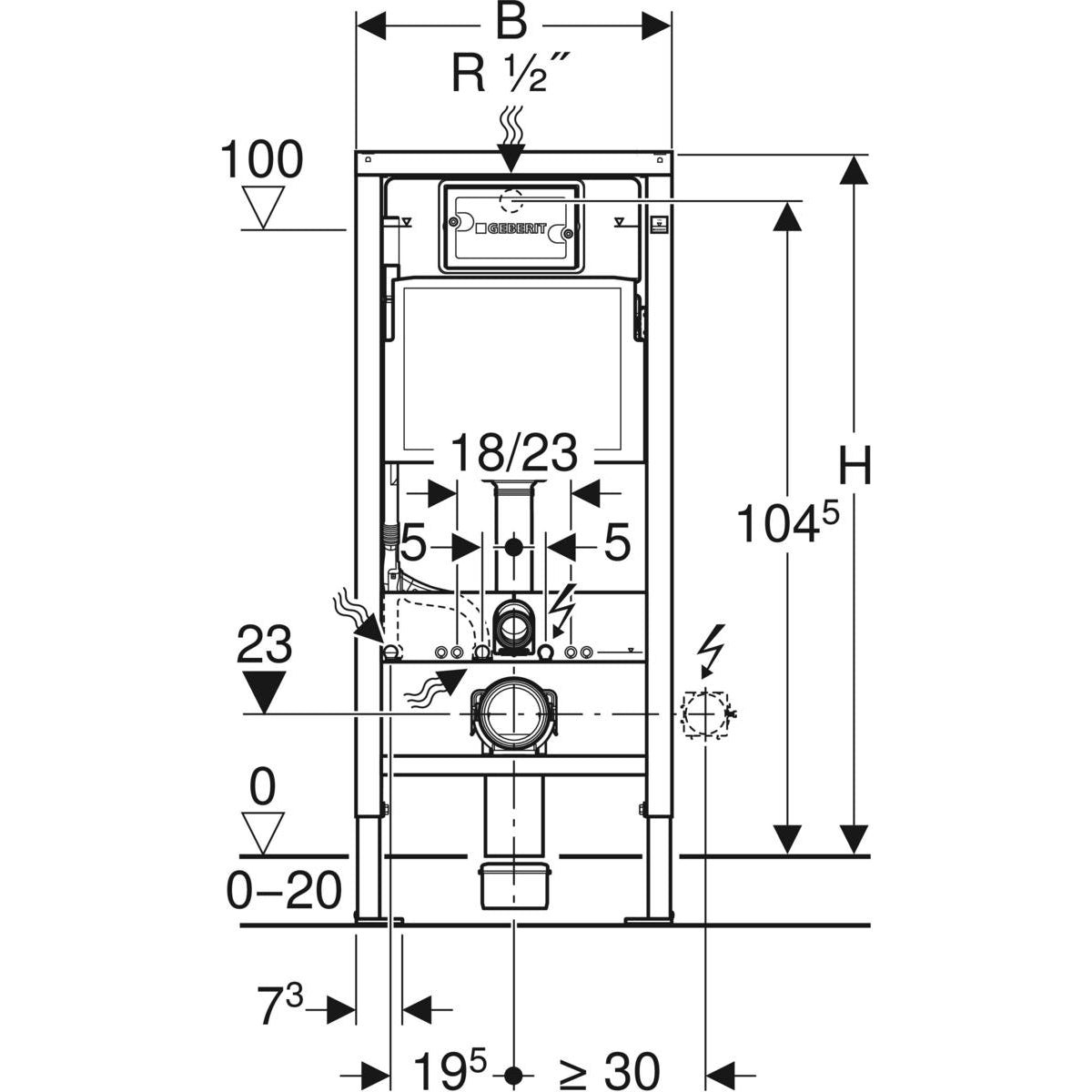

For floor constructions 0–20 cm
Characteristics

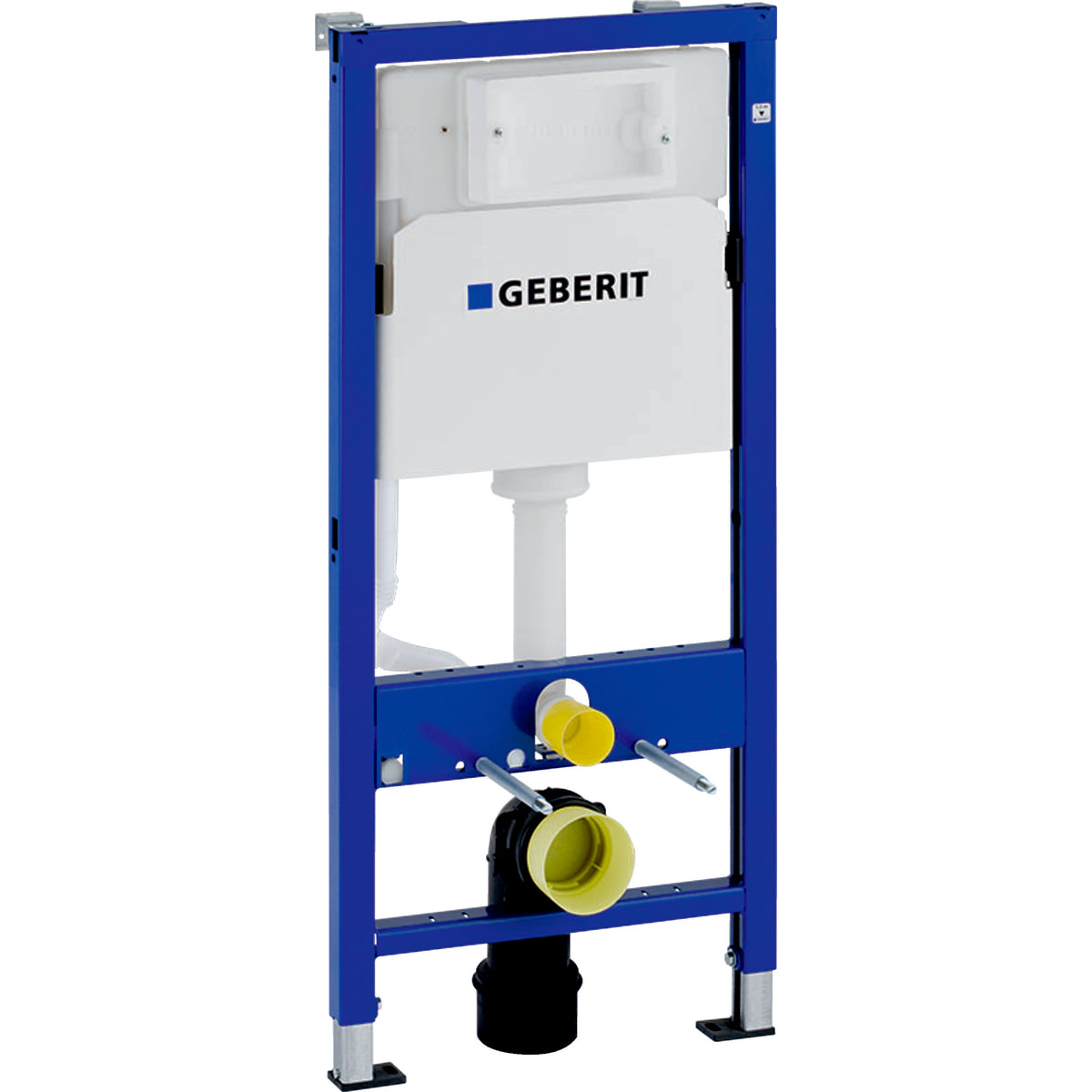

Self-supporting frame, powder-coated
Frame top open
Frame with ø 9 mm drilling holes for fastening in wood frame construction
Frame with holes to receive Geberit Duofix wall anchors for elements with frame top open
Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
Galvanized feet
Feet adjustable 0–20 cm
Foot plates made of plastic
Foot plate depth suitable for installation in U-profiles UW 50
Connection bend can be mounted without tools

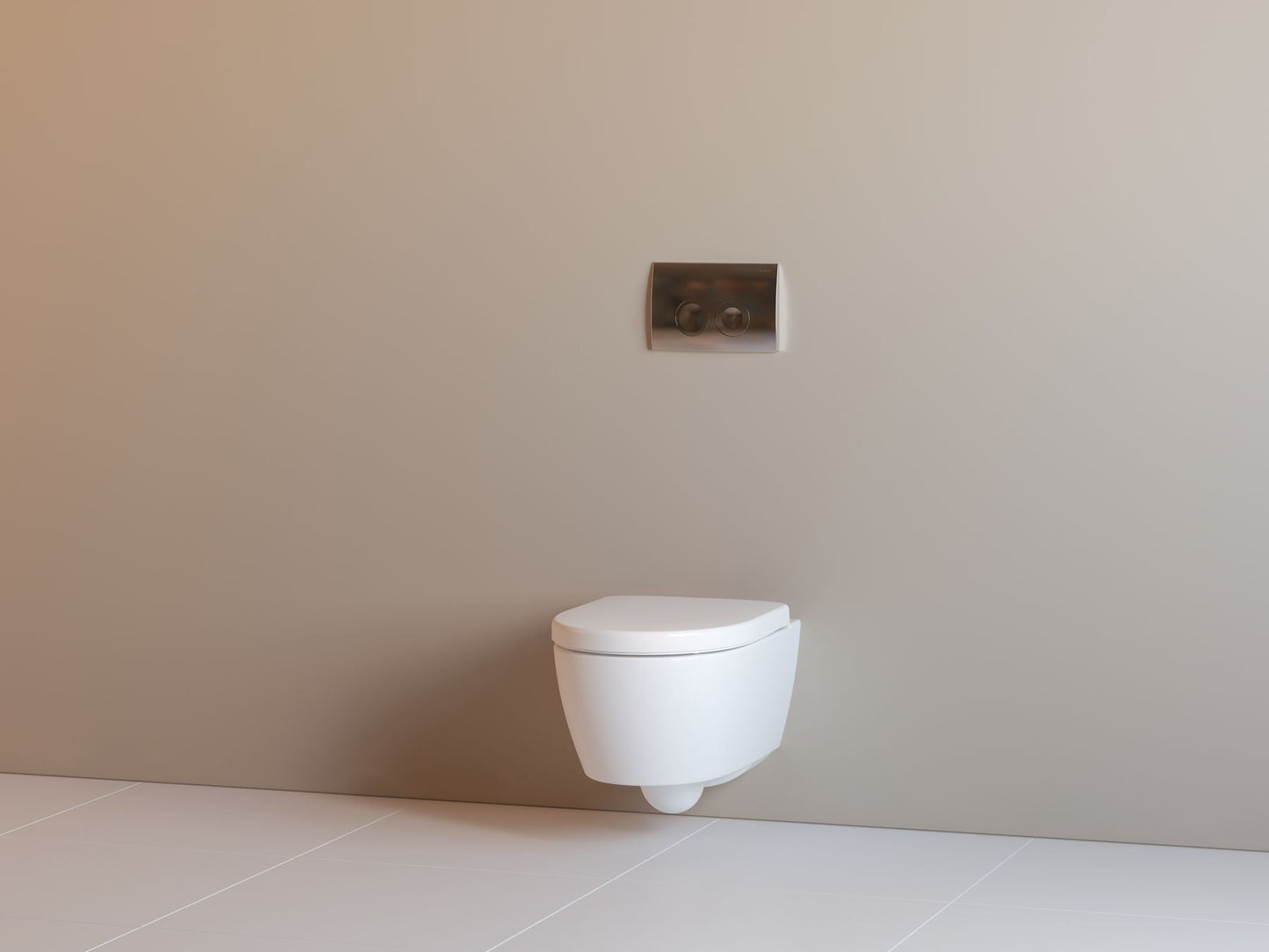

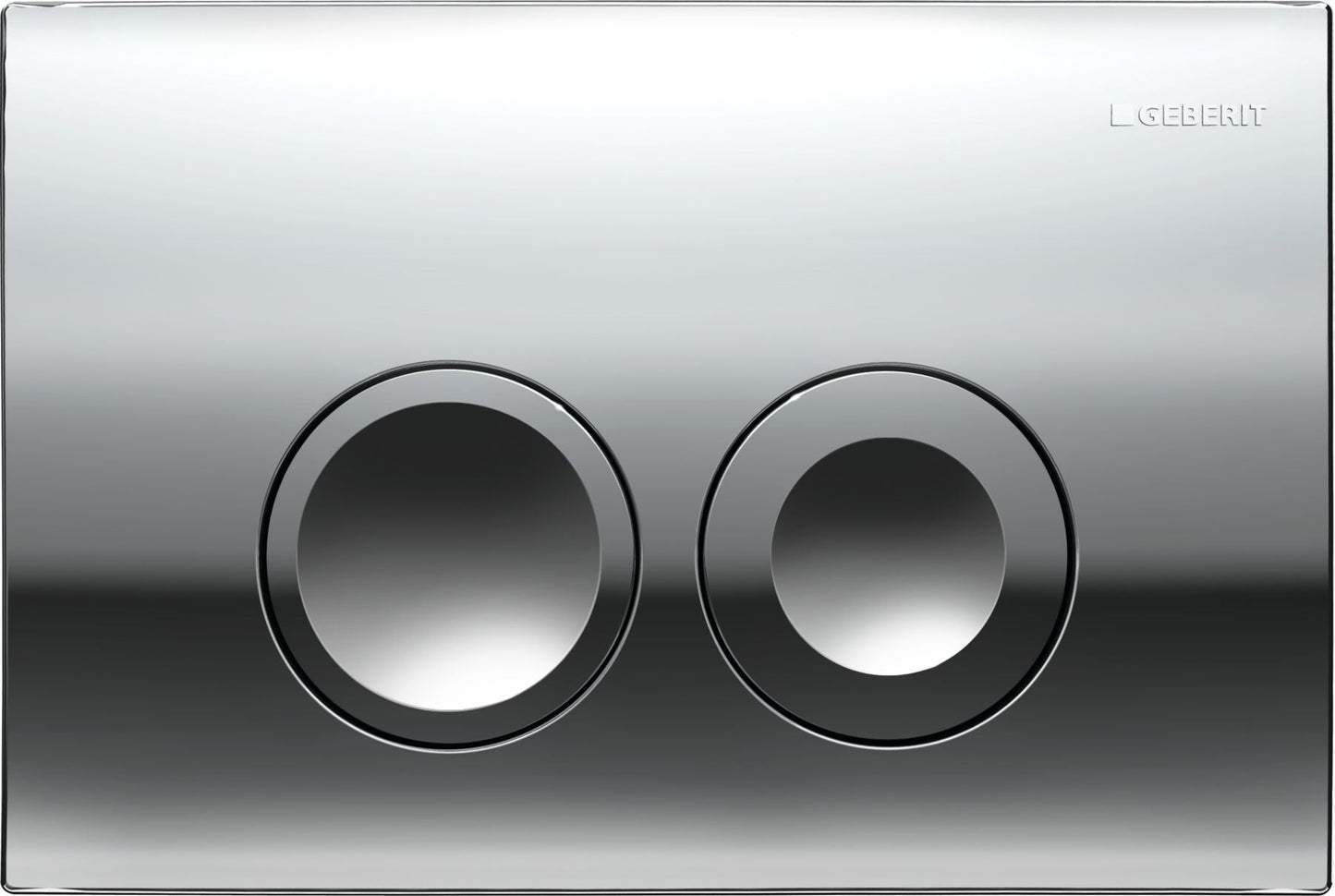

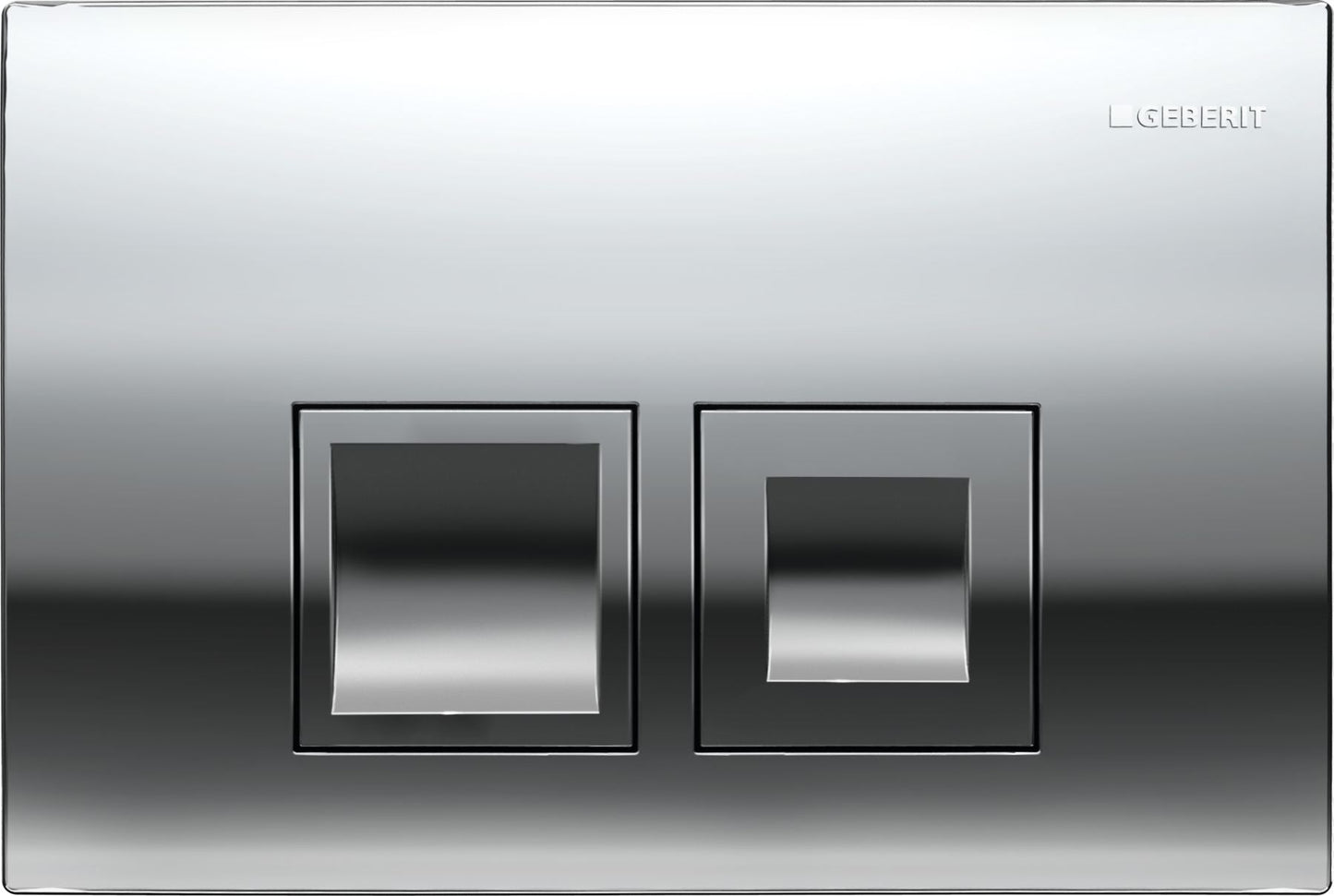

Concealed cistern with front actuation
Concealed cistern, fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Immediate post flush possible with factory setting
Water supply connection on the rear or top centre
Equipped with conduit pipe for feed pipe for connection of Geberit
