Geberit Type 212 Flush Valve Boxed Pack for Sigma Delta and Omega Cisterns

This Geberit Type 212 complete flush valve is suitable all Geberit concealed cisterns in the Sigma, Delta and Omega series.

Its discharge behaviour is ideally suited to Geberit ceramic pans, and the flush volumes can be ?exibly adapted as required.

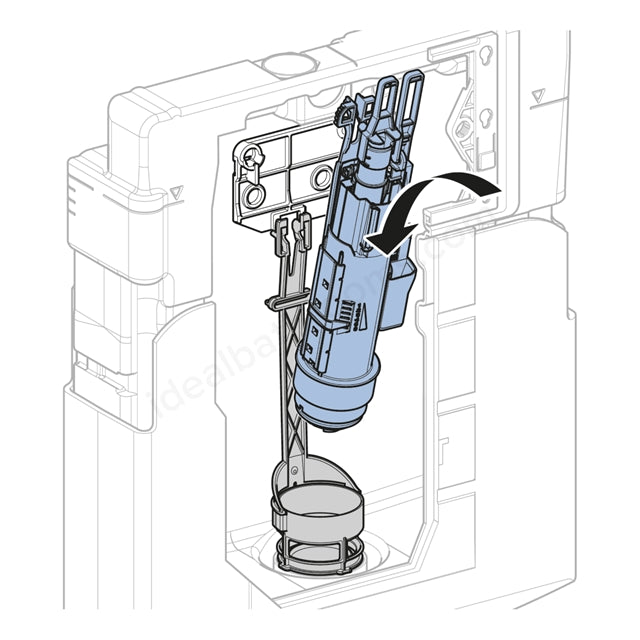

The integrated throttle can be set at five different levels to reduce over splashing of WC ceramics. Its compact design facilitates quick installation and removal via the service opening of the cistern.

The flush valve is backwards compatible with all Geberit concealed cisterns in the Sigma series (UP300) up to year of manufacture 2001, the Omega series up to 2014 and the Delta series up to 2006.

Features:
• A single flush valve for all Geberit cisterns
• Slim and compact for easy installation and removal
• Large flush volume with flexible settings for 4, 4.5, 6 and 7.5 litres
• Small flush volume with flexible settings between 2 and 4 litres
• Reduces over splashing of the WC ceramic with throttle integrated in the basket
• Backwards compatible with Geberit Sigma, Omega & Delta Concealed Cisterns

Specification Sheet
Installation
