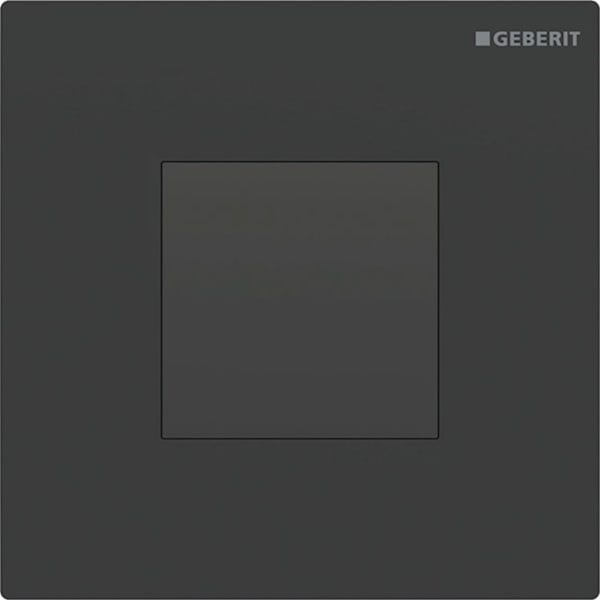

Geberit urinal flushing controls - Type 30 - Battery powered

Geberit urinal flush control with electronic flush actuation, battery operation, Type 30 cover plate, featuring a large, rectangular button for easy flushing. Type 30 urinal flush plates are made of rugged

• Battery type : Alkaline (1.5 V AA)
• Service life, supplied battery : 2 years
• Protection degree : IP45
• Operating voltage : 3 V DC
• Flow pressure : 1–8 bar
• Test pressure, water max. : 16 bar
• Test pressure, air / inert gas max. : 3 bar
• Flow rate at 1 bar without flow limiter : 0.3 l/s
• Flow rate at 1 bar with flow limiter : 0.18 l/s
• Interval flush time, factory setting : 5 s
• Detection time, factory setting : 7 s
• Flush time, adjustment range : 1–15 s
• Flush time, factory setting : 7 s

Installation instructions
