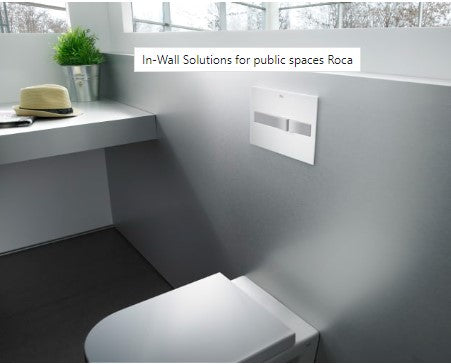

Roca Duplo Concealed frame & cistern

Systems that combine efficiency and technology, turning them into solutions that look after the design and adapt perfectly to the space concerned. Innovation and the avant-garde join forces to guarantee the best features, where convenience, saving and style are to be found in every detail.

• Dynamic pressure range: 0,1 - 10 Bar
• Elbow connection: DN100 (110 mm), DN90 (90 mm)
• Flushing type preset: Dual flush 3/6 litres
• Minimum fixation depth (mm): 140/140/90/180
• Operating panel position: Frontal/Top
• Recommended for public spaces
• Suitable for: Wall-hung WC
• Tank depth (mm): 125/80/130
• Water inlet position: Back, Top

INSTALLATION MANUAL (1.28 MB)
SPARE PARTS CATALOGUE (9.03 MB)
