Tavistock Apex Concealed Cistern - Side Inlet

The Apex cistern is compatible with all Tavistock back to wall pans and furniture units. The Apex dual flush concealed cistern has a side entry inlet and is provided pre-assembled. Featuring a pneumatic dual flush valve 3/6L cistern is ideal for slimline and low height furniture as it is only 135mm deep. The cistern has top and front access and is suitable for 0.2-10.0bar working pressure range.

You can opt to upgrade the flush button on your Apex cistern to a square dual flush button or alternatively an Ellipse push plate. Both buttons have a chrome finish and feature pneumatic dual flush.

• 3/6 litre adjustable dual flush options
• Pneumatic flush valve
• Push button operation
• Top & front access
• 0.2 - 10.0bar working pressure range
• 200,000 cycle endurance tested
• Rigorously tested before leaving factory
• 90 degree flush pipe  for neat installation
• Designed to work with low height furniture
• Ideal for slimline furniture at only 135mm deep
• Constructed from high density polyethylene with polystyrene insulation jacket to prevent condensation and allow for quiet re-filling
• WRAS approved.

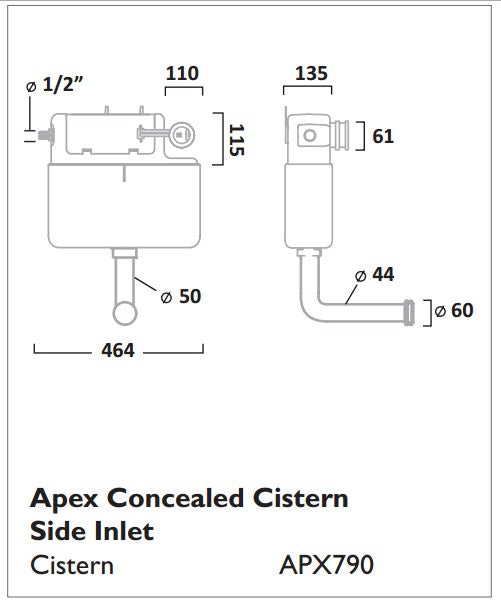

Cistern size: 464(w) x 365(h) x 135(d)mm

Fitting Instructions
Download the Apex concealed cistern fitting instructions
