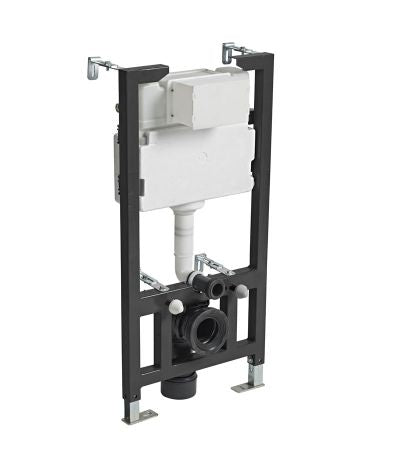

Tavistock WC Frame for Wall Hung WC

This wall hung frame is suitable for boxed in applications, especially under windows. The frame comes complete with an integral 6/3 litre dual flush cistern and an anti-condensation jacket for insulation.

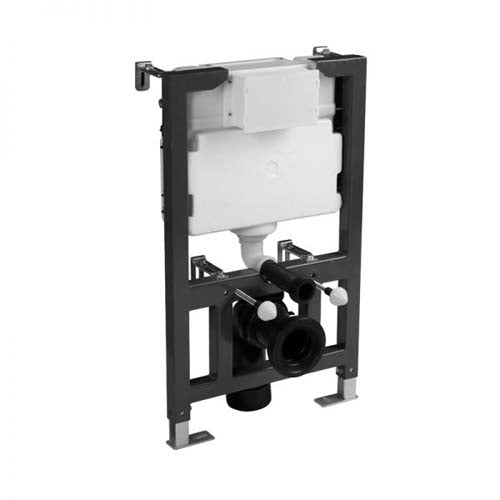

Tavistock WC Frame for Wall Hung WC - 82cm
This wall hung frame is suitable for use with 600mm and wider back to wall WC furniture units. The frame comes complete with an integral 6/3 litre dual flush cistern and an anti-condensation jacket for insulation. The 0.82M wall hung frame has an adjustable depth 167 - 215mm and has adjustable height legs (200mm adjustment), the frame features top and front access and flush plate mounting options. The wall hung frame has a 0.2 - 10.0bar working pressure range. You can also use the Tavistock Ellipse push plate or square dual flush button with the wall hung frame. (see below for pricing)

0.82 WALL HUNG FRAME TECH DATA SHEET

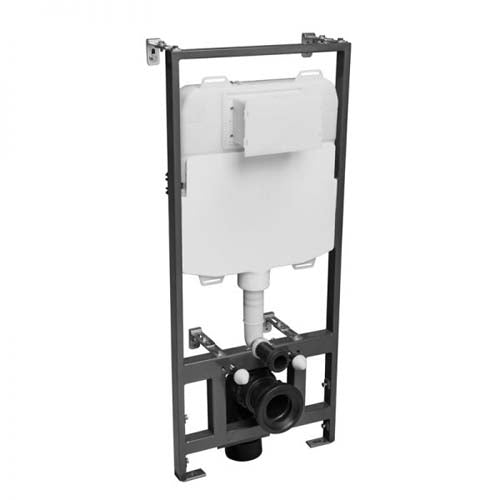

Tavistock WC Frame for Wall Hung WC - 100cm
This wall hung frame is suitable for boxed in applications, especially under windows. The frame comes complete with an integral 6/3 litre dual flush cistern and an anti-condensation jacket for insulation. The 1.0M wall hung frame has an adjustable depth 167 - 215mm and has adjustable height legs (200mm adjustment), the frame features top and front access and flush plate mounting options. The wall hung frame has a 0.2 - 10.0bar working pressure range.

2 0 TR9015 1000MM WALL HUNG FRAME INSTRUCTIONS V1
2 0 TR9015 1000MM WALL HUNG FRAME AND CISTERN

Tavistock WC Frame for Wall Hung WC - 117cm
The 1.17M wall hung frame has an adjustable depth 140 - 200mm and has adjustable height legs (200mm adjustment), the frame features front access and push plate position. The wall hung frame has a 0.2-10.0bar working pressure range. The mimimum depth for 'straight out' waste pipe routings is 110mm. You can use the Tavistock Ellipse push plate or square dual flush button with the wall hung frame.

1.17M WALL HUNG FRAME TECH DATA SHEET
