Vado Aquablade Shower Column

Square thermostatic shower valve with integrated diverter and rigid riser

• Aquablade 300mm x 200mm rectangular shower head
• Aquablade square single function shower handset
• 200mm height adjustment tolerance: min 940mm – max 1140mm
• 18mm depth adjustment tolerance: min 54mm – max 72mm
• offset connectors and easy-fit brackets included
• Thermostatic cartridge V-703-34S
• Flow cartridge VEL-002A-C/P
• minimum operating pressure 1.0 bar MP

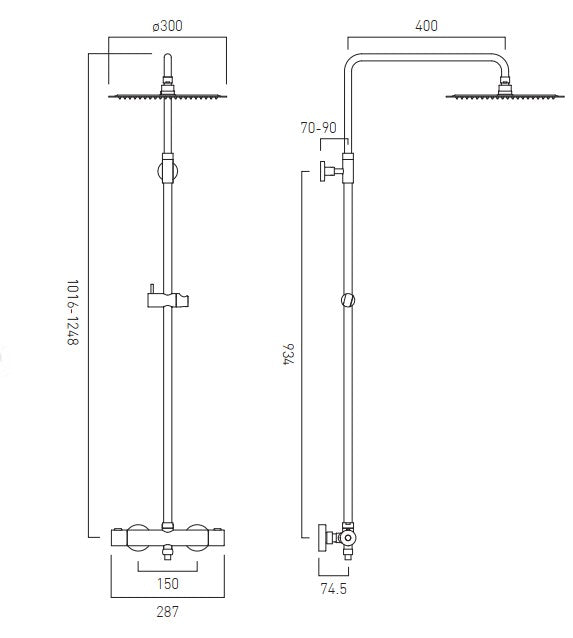

Round thermostatic shower valve with integrated diverter and rigid riser

• Aquablade 300mm (12”) round shower head
• Aquablade round single function shower handset
• 232mm height adjustment tolerance: min 1016mm – max 1248mm
• 20mm depth adjustment tolerance: min 70mm – max 90mm
• offset connectors and easy-fi t brackets included
• Thermostatic cartridge V-001B-PLA
• Flow cartridge VEL-002A-C/P
• Minimum operating pressure 1.0 bar MP

Square
USER GUIDE AND CARE INSTRUCTION
INSTALLATION INFORMATION
SPECIFICATION SHEET

Round
USER GUIDE AND CARE INSTRUCTION
INSTALLATION INFORMATION
SPECIFICATION SHEET
