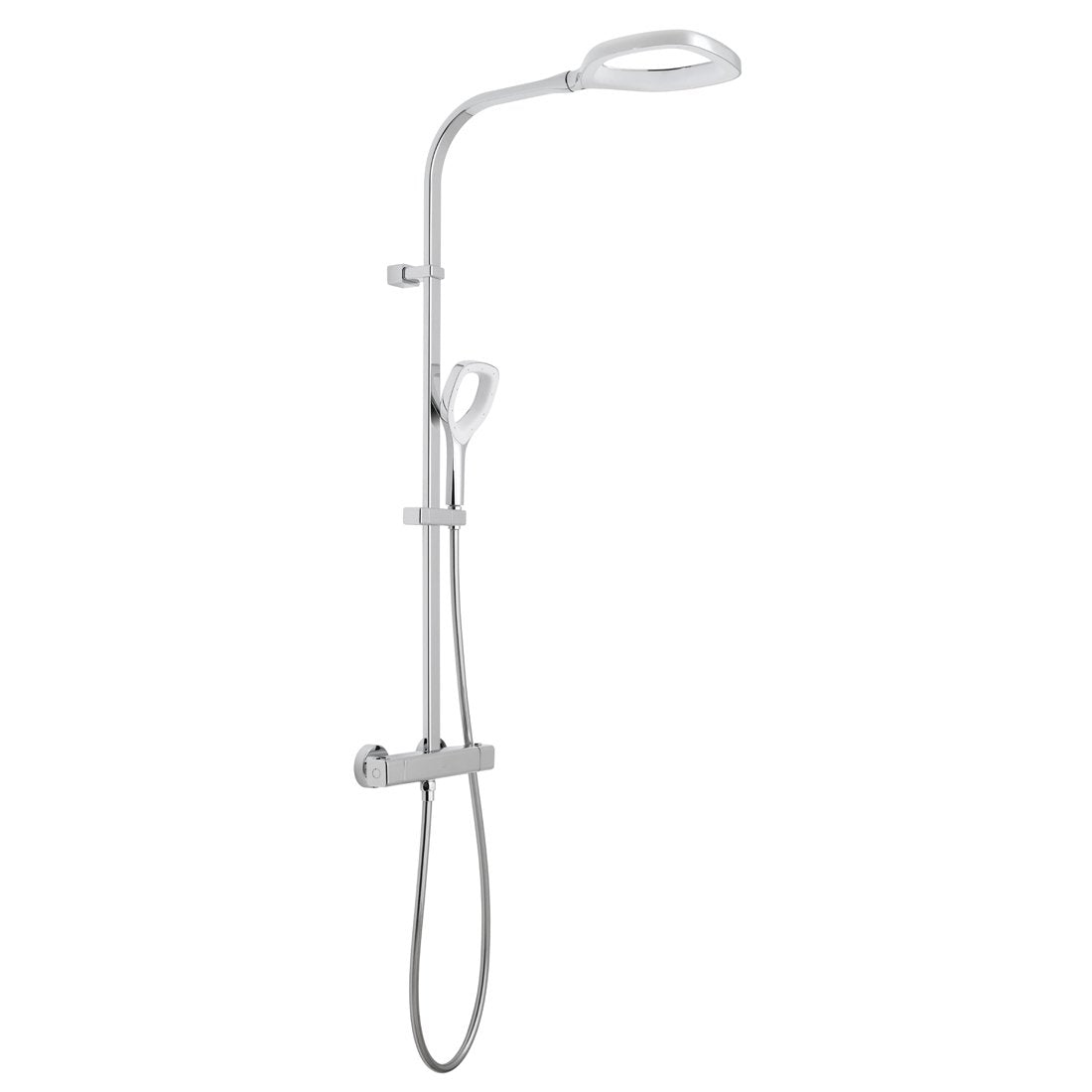

Vado Horizon Square Thermostatic Shower Column

Horizon

• square thermostatic shower valve with integrated diverter and rigid riser
• Horizon 194mm (8”) cross-spray shower head
• Horizon single function cross-spray shower handset
• 15mm depth adjustment tolerance: min 65mm – max 80mm
• offset connectors and easy-fi t brackets included
• thermostatic cartridge V-001B-PLA
• flow cartridge VEL-002A-C/P
• minimum operating pressure 1.0 bar MP

USER GUIDE AND CARE INSTRUCTION

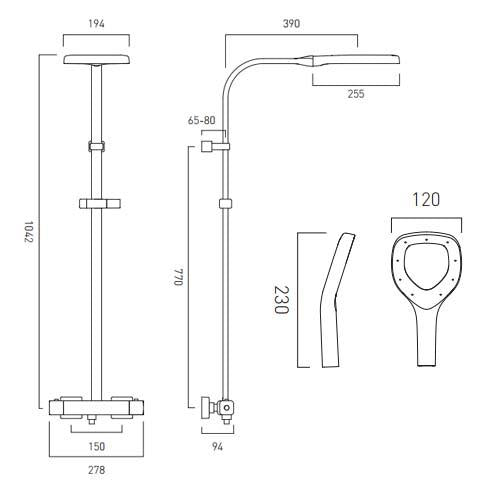

TECHNICAL DRAWING
SPECIFICATION SHEET
