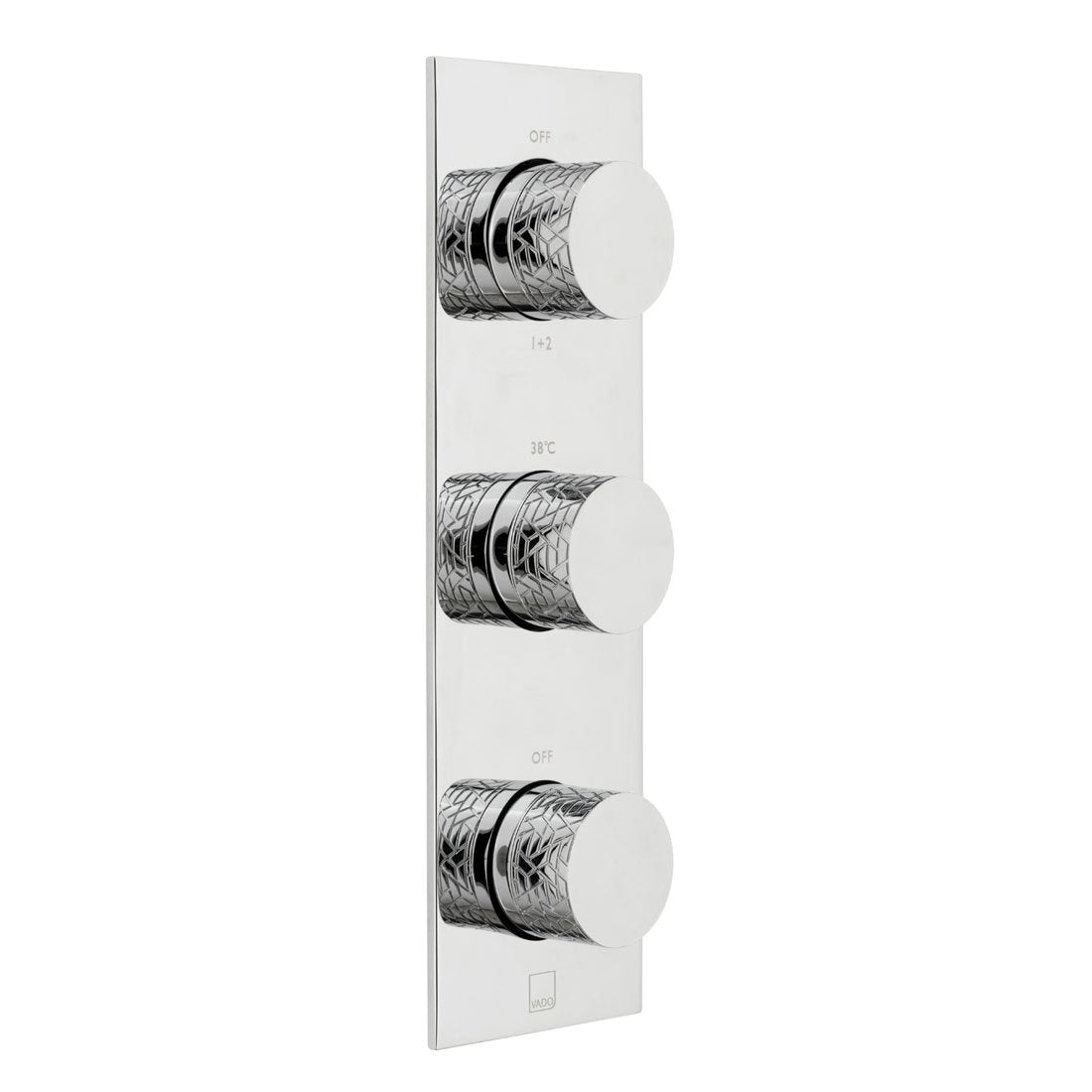

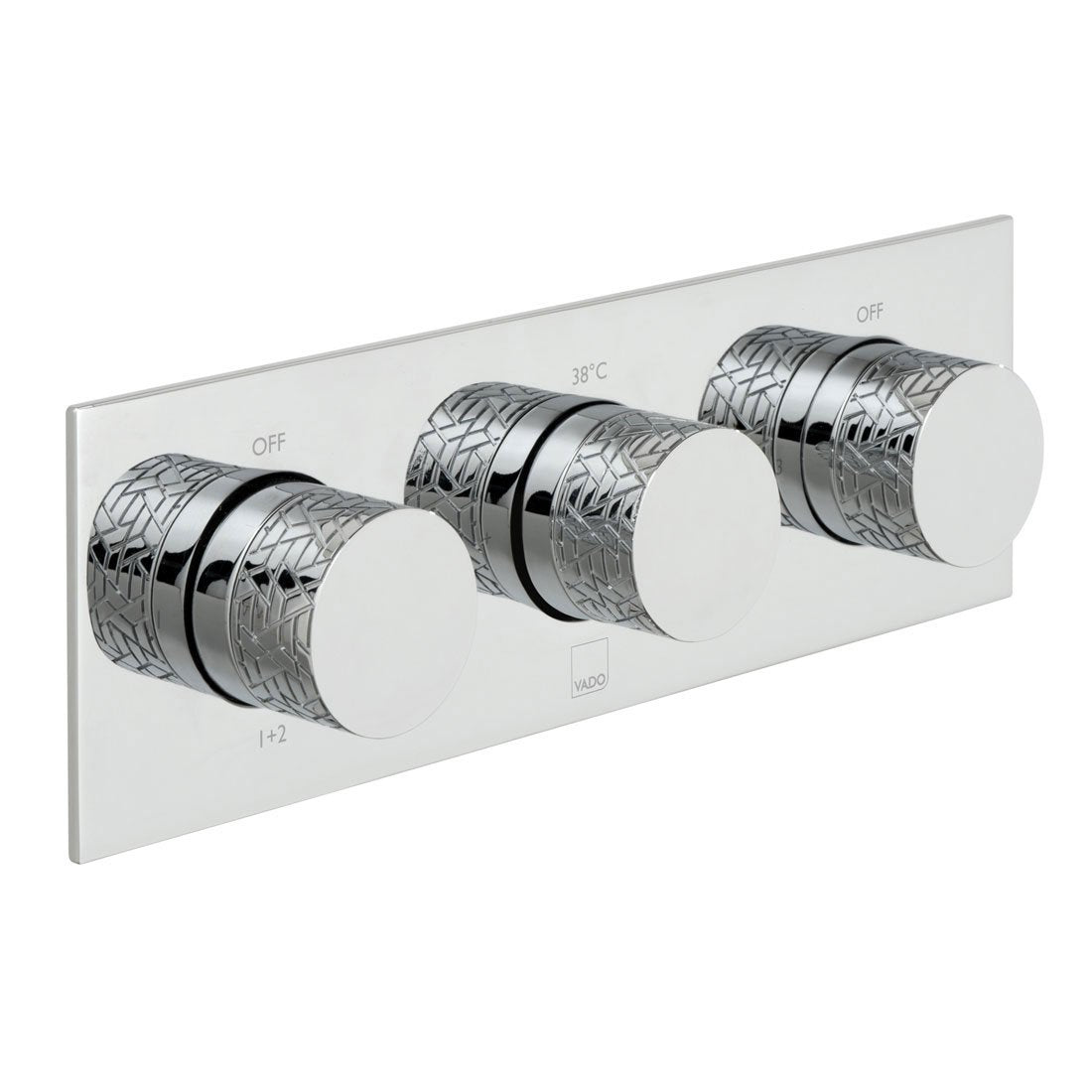

Vado Omika Three Outlet Three Handle Tablet Thermostatic Valve with All-Flow Function

An elegant, stylish range of horizontal and vertical thermostatic shower valves that are compact in form and unique in operation. This will inspire and give eye-catching look which adds a unique character to your bathroom and can also be a cost effective way of refreshing your bathroom.

• Tablet Omika horizontal & Vertical concealed 3 outlet 3 handle thermostatic shower valve with all-flow function wall mounted
• thermostatic cartridge V-001C-PLA
• diverter cartridge TAB-001G-DIV
• flow cartridge TAB-002A-3/4
• 2 x 3/4” female inlets
• 3 x 3/4” female outlets
• includes 3/4” - 1/2” adaptors
• supplied with mortar/tile guard
• min-max wall mount 75-100mm
• optimum installation depth 87mm
• minimum operating pressure
• 0.2 bar LP (shower) 1.0 bar MP (bath)

USER GUIDE AND CARE INSTRUCTION
INSTALLATION INFORMATION

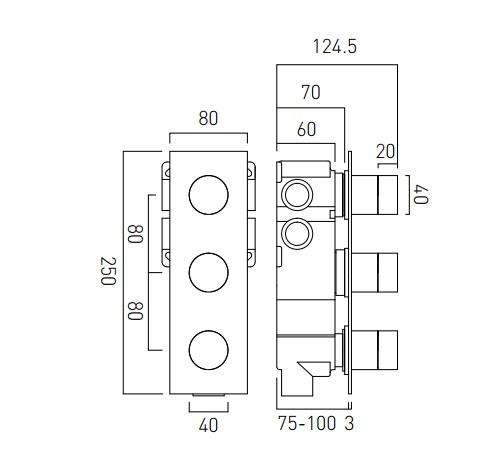

SPECIFICATION SHEET - Vertical

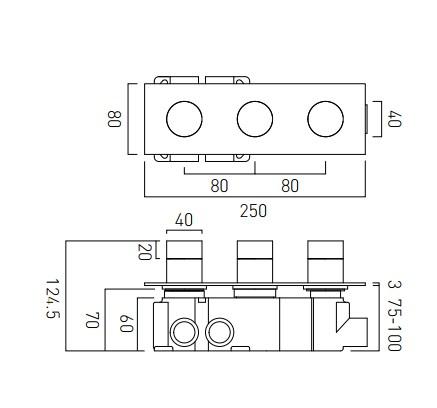

SPECIFICATION SHEET - Horizontal
