Vado Origins Concealed Manual Shower Valve Single Lever Wall Mounted

An elegant, stylish range of horizontal and vertical thermostatic shower valves that are compact in form and unique in operation. This will inspire and give eye-catching look which adds a unique character to your bathroom and can also be a cost effective way of refreshing your bathroom.

• Origins concealed 1 outlet shower valve single lever wall mounted with circular backplate
• ceramic cartridge CAR-K35A
• 2 x 1/2” female inlets
• 2 x 1/2” female outlets (one is blanked off)
• min-max wall mount 40-65mm
• minimum operating pressure 0.2 bar LP (shower)
• minimum operating pressure 1.5 bar MP (bath)
• chrome handle supplied as standard
• Nuance handles may be purchased separately

INSTALLATION INFORMATION

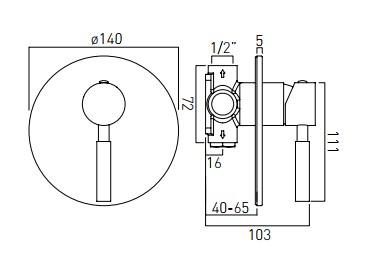

TECHNICAL DRAWING
SPECIFICATION SHEET
