Vado DX Phase 2 Outlet Square Thermostatic Shower Set

Phase

• 2 outlet thermostatic shower valve
• Aquablade 200mm square head with shower arm
• Instinct single function shower kit with integrated outlet and bracket
• Thermostatic cartridge V-704-34S
• diverter cartridge FL-804-33X/3X
• Minimum operating pressure 0.2 bar LP

kit comprises:

• 2 x 3/4” female inlets
• 2 x 3/4” female outlets
• includes 3/4” - 1/2” adaptors
• inc. bleed valve for system fl ush on installation
• min-max wall mount 70-95mm
• optimum installation depth 82mm

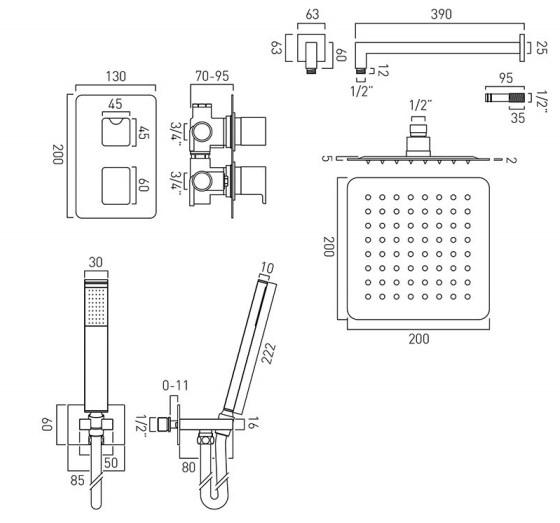

TECHNICAL DRAWING
SPECIFICATION SHEET
