Vado Phase 3 Outlet 2 Handle Thermostatic Shower Valve Wall Mounted

An elegant, stylish range of horizontal and vertical thermostatic shower valves that are compact in form and unique in operation. This will inspire and give eye-catching look which adds a unique character to your bathroom and can also be a cost effective way of refreshing your bathroom.

• DX Phase concealed 3 outlet, 2 handle thermostatic shower valve with integrated diverter wall mounted with rectangular backplate
• thermostatic cartridge V-001C-PLA
• diverter cartridge FL-804-33X/3X
• 2 x 3/4” female inlets
• 3 x 3/4” female outlets
• includes 3/4” - 1/2” adaptors
• inc. bleed valve for system flush on installation

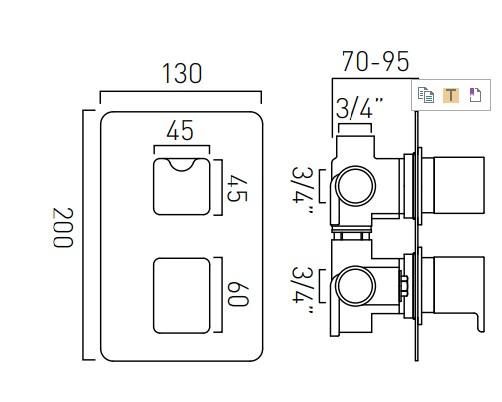

• min-max wall mount 70-95mm
• optimum installation depth 82mm
• minimum operating pressure 0.2 bar LP (shower)
• minimum operating pressure 1.0 bar MP (bath

INSTALLATION INFORMATION
SPECIFICATION SHEET
