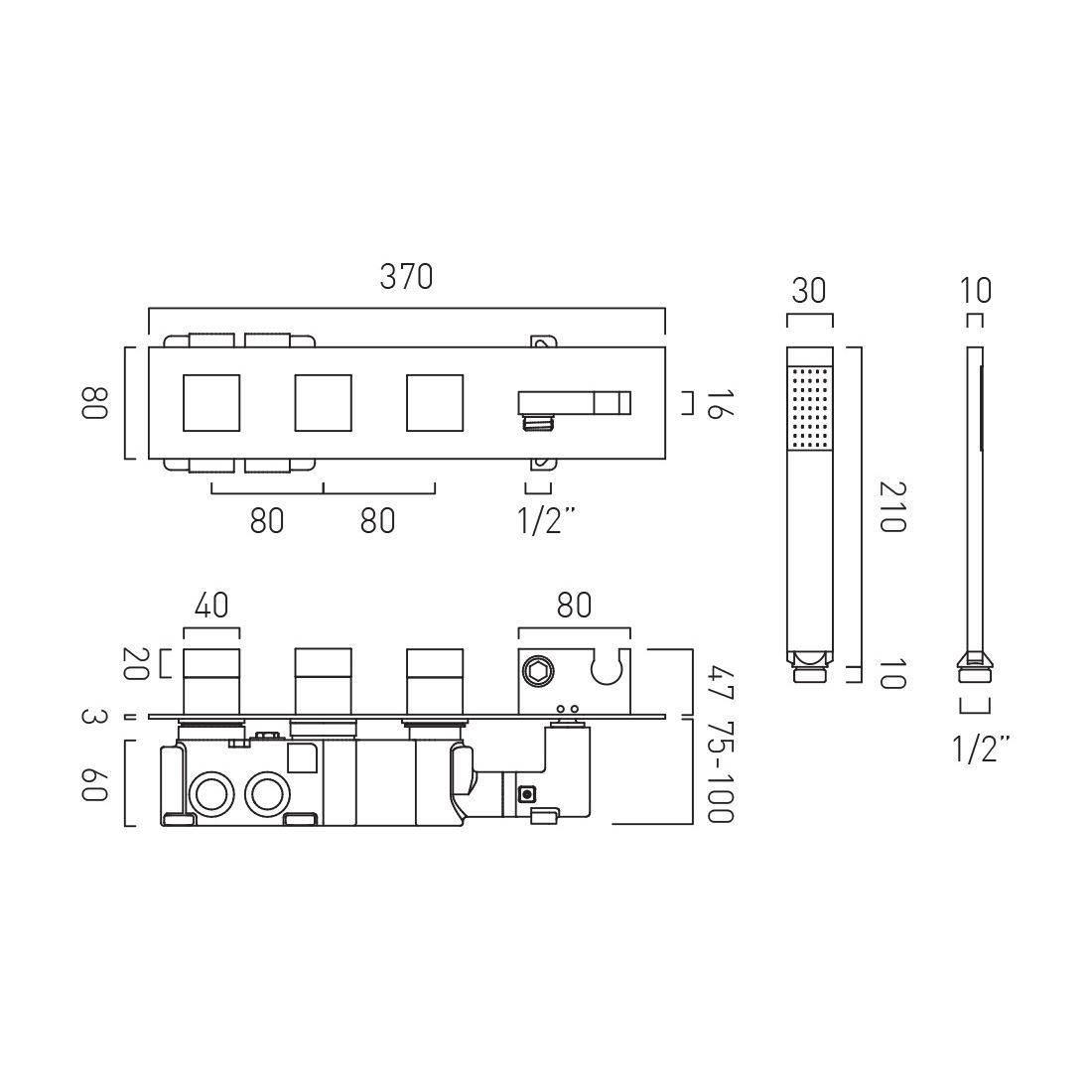

Vado Tablet Notion Square 3 Outlet 3 Handle Concealed Thermostatic Valve

Tablet Notion Square 3 Outlet 3 Handle Concealed Thermostatic Valve with Integrated Outlet Handset and Hose

• Tablet iO Notion horizontal concealed
• thermostatic shower valve with integrated single
• function square mini kit, 3 outlet 3 handle
• with all-fl ow function
• thermostatic cartridge C-704-34S
• diverter cartridge FL-802-33/2MX
• fl ow cartridge FL-301-RTC
• 2 x 3/4” female inlets
• 2 x 3/4” female outlets, 1 x 1/2” male outlet
• includes 3/4” - 1/2” adaptors
• supplied with mortar/tile guard
• min-max wall mount 75-100mm
• optimum installation depth 87mm
• minimum operating pressure
• 0.2 bar LP (shower) 1.0 bar MP (bath)
