Vado Tablet Notion - 2 Outlet Thermostatic Vertical Shower set and Slide Rail Kit

Tablet Notion Vertical

• 2 outlet thermostatic shower valve with all-flow function
• Aquablade 200mm x 300mm rectangular head and shower arm
• V2 slide rail shower kit with single function handset
• Instinct wall outlet
• Thermostatic cartridge V-704-34S
• Diverter cartridge FL-802-33/2MX
• Minimum operating pressure 1.0 bar MP

kit comprises:

• shower valve includes 3/4” - 1/2” adaptors
• min-max wall mount 68-77mm (standard)
• optimum installation depth 73mm (standard)

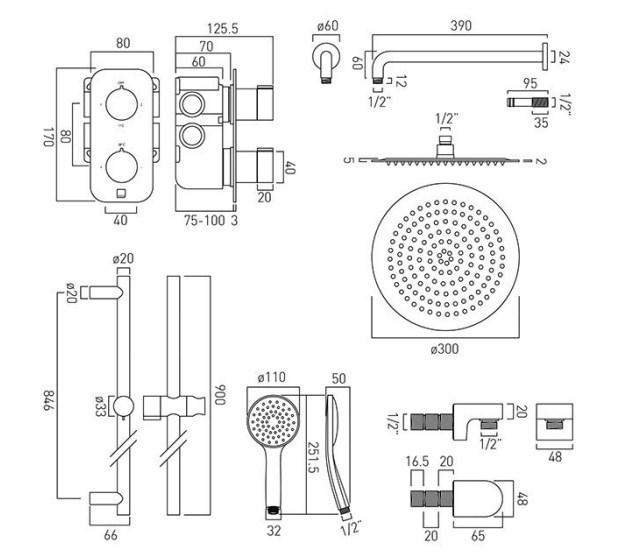

TECHNICAL DRAWING
SPECIFICATION SHEET
