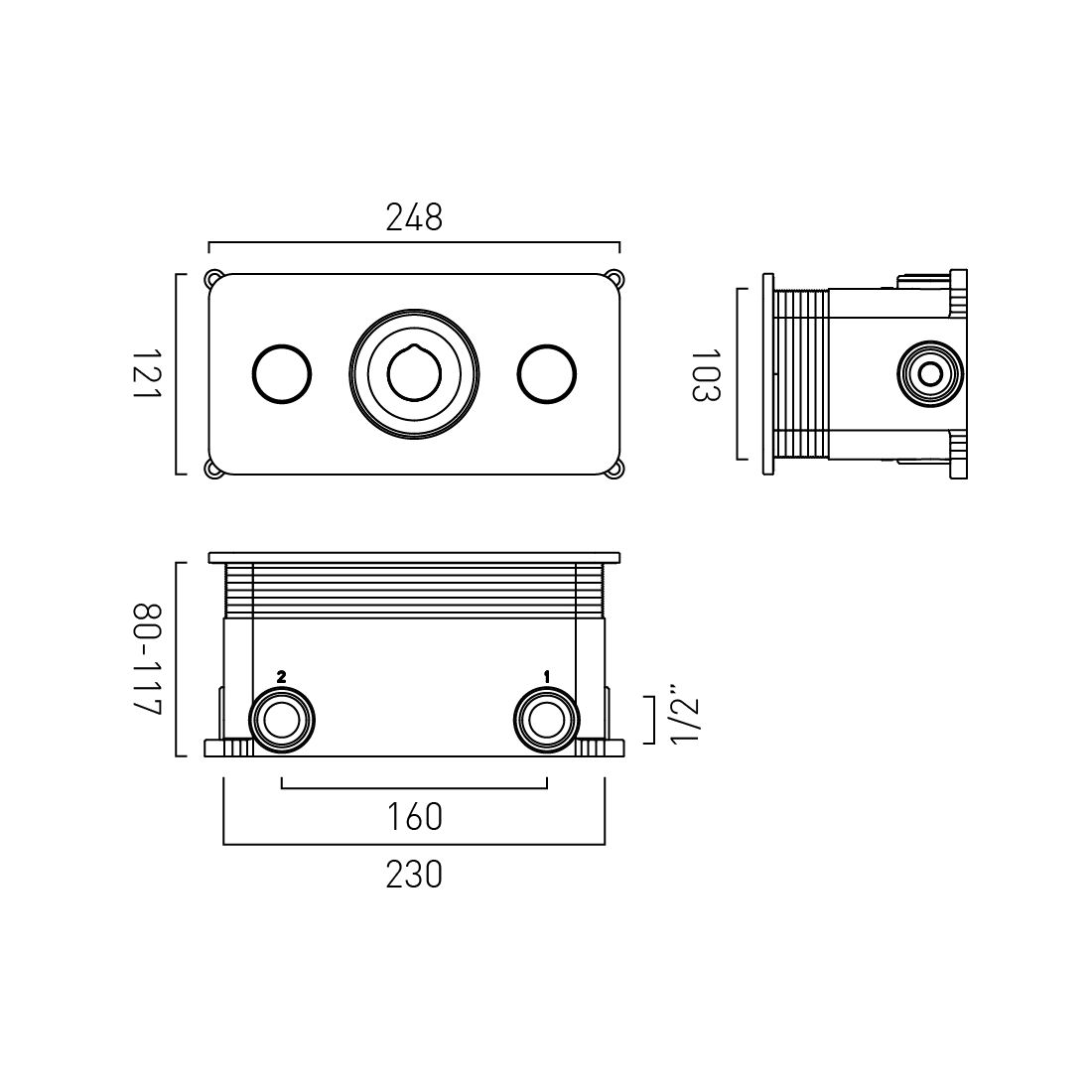

Vado Zone 2 Button 2 Outlet Concealed Thermostatic Valve

2 Outlet concealed thermostatic shower valve, with push button control in a high shine polished Chrome.

• Shower Type : Shower Valve
• Valve Type : Concealed
• Style : Round, Square
• Orientation : Vertical/Horizontal
• Number of Outlets : 2 Outlet
• Min-max Wall Mount : 80-117mm
• Connections / Fittings : 2 x 1/2” female inlets, 2 x 1/2” female outlets, 2 x 1/2” capped-off female outlets*
• Spare Parts : Thermostatic cartridge V-701-32S, 2 x flow-stop-go cartridge N-10-01-26F
• Mounting : Wall Mounted
• Plumbing System Suitability : Combination Boiler
• Collection Name : Zone
• Finish : Chrome
• Minimum Operating Pressure : 1.0 Bar MP
• Guarantee : 15 Year Guarantee
• Notes : to operate the additional outlet(s) further purchase of ZON-143 is required
